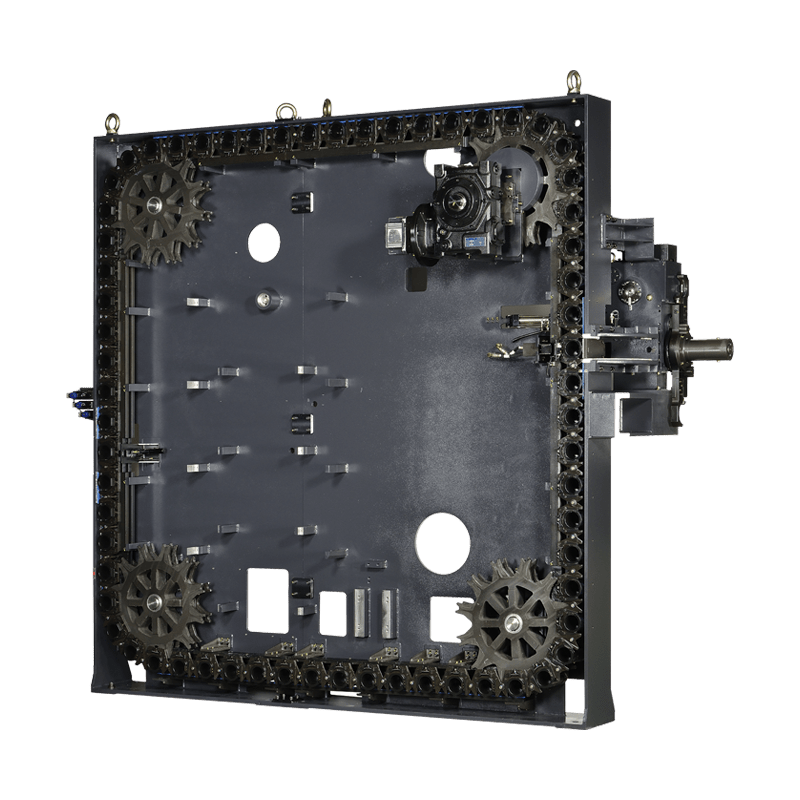

50-Separate Pocket Type / Pocket Rotation Mechanism / Cambox

Features of Tol Magazine

Advanced guide design eliminates chordal effect at the sprocket, ensuring smooth, quiet, and low-vibration chain operation.
Aluminum alloy tool pots eliminate issues with aging and cracking.
Separated pocket design; the tool chain can continue operating while a tool pot rotates to the spindle side.
Supports fixed-address tool management, simplifying large-diameter tool management.
The tool chain features a gripper design to securely lock the tool pots in place.
Tool magazine is expandable.

Product Profile of #50 Separate Pocket Type / Pocket Rotate Mechanism Magazine
Model Number	H5AQA	H5DNGT
Tool Specification	BT / CAT / DIN / HSK100
Tool Capacity	40T / 60T
Pocket Pitch (mm)	127
Max. Tool Diameter (mm) (Adjacent Pocket Full / Adjacent Pocket Empty)	125 / 240
Max. Tool Weight (kg)	25
Tool Change Time (sec / 60hz)	3
Magazine Speed (sec / tool / 60hz)	0.3 (Servo)
Tool Management Selection	Fixed Address Type
Tool Changing Selection	Roller Gear Cambox
