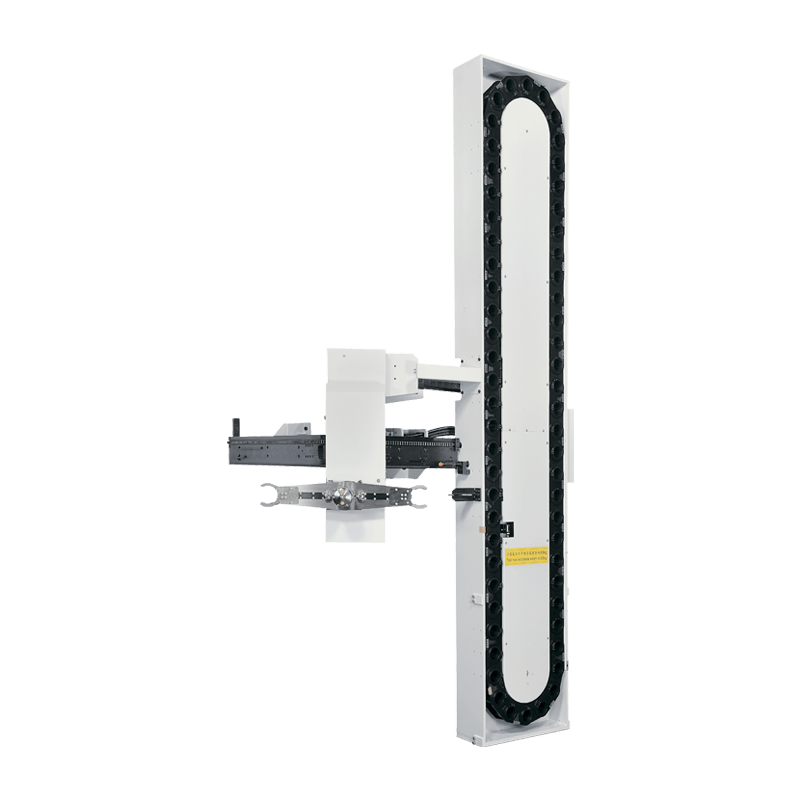

50-Chain Type Pocket / Rail Type Tool Shifter Mechanism

Features of Tol Magazine

Advanced guide design eliminates chordal effect at the sprocket, ensuring smooth, quiet, and low-vibration chain operation.
Tool pots made of high-rigidity steel.
Separated pocket type for easy spec changing.
The tool arm body is machined from medium-carbon steel for exceptional structural rigidity, featuring a specialized surface treatment that ensures a premium finish and prevents oxidation.
The tool arm utilizes a rack-and-pinion rotation mechanism for high stability and heavy load capacity, with built-in tool extraction and insertion sensors to accurately verify position.
Maximum tool weight capacity up to 50kg.

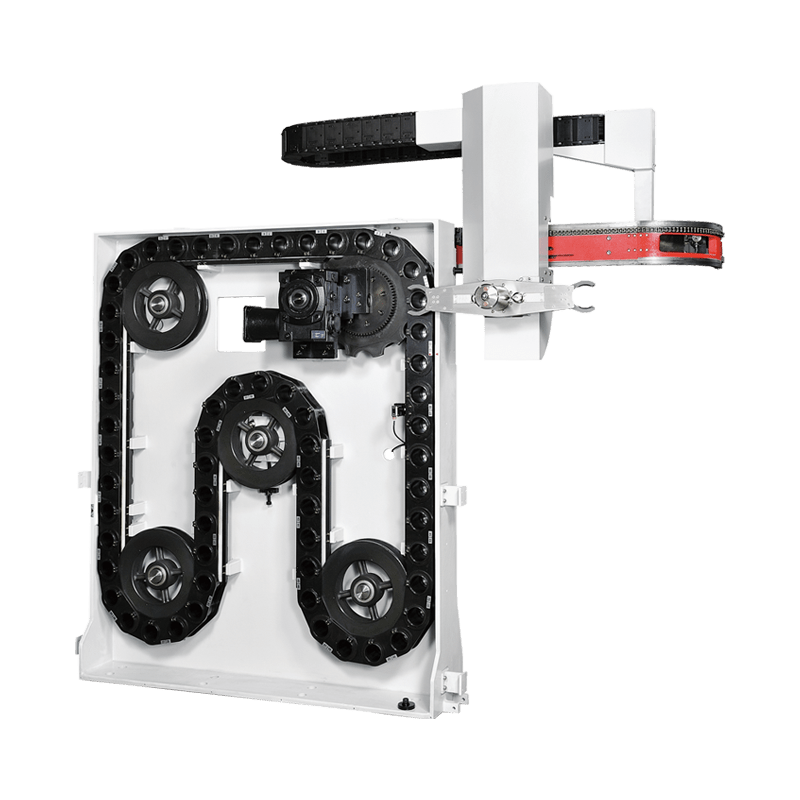

Product Profile of #50 Chain Type Pocket / Rail Type Tool Shifter Mechanism Magazine
Model Number	H5CDF
Tool Specification	BT / CAT / DIN / HSK100
Tool Capacity	40T / 60T / 80T / 90T / 100T / 120T
Pocket Pitch (mm)	130
Max. Tool Diameter (mm) (Adjacent Pocket Full / Adjacent Pocket Empty)	125 / 250
Max. Tool Weight (kg)	25
Tool Change Time (ATC Only) (sec / 60hz)	4
Magazine Speed (sec / tool / 60hz)	0.31 (Servo)
Tool management selection	Fixed Address Type
Tool Changing Selection	Hydraulic Rock and Gear Mechanism
