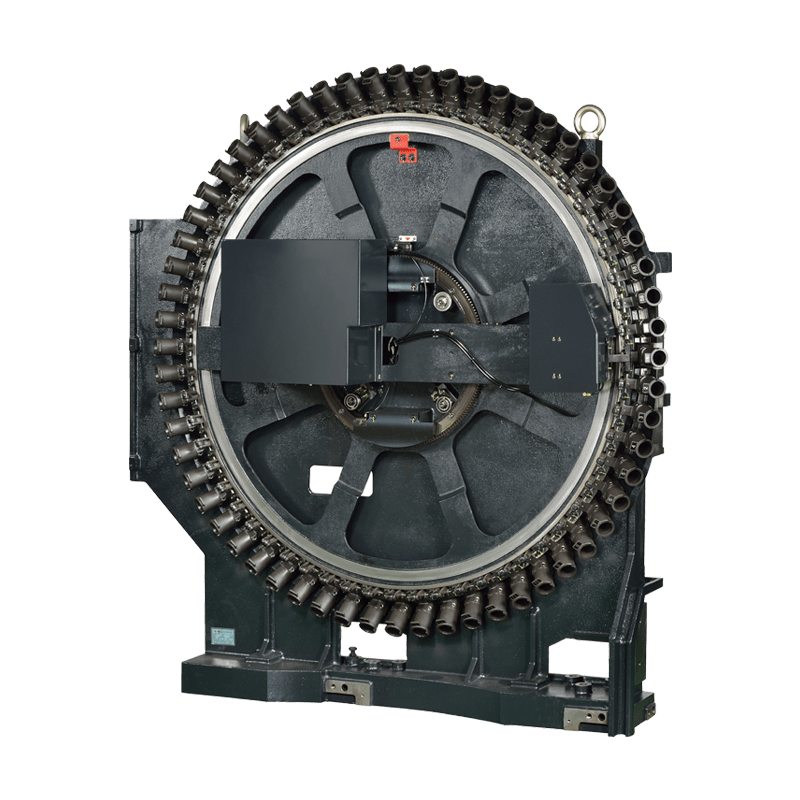

40-Taper Disc Type Tool

Features of Tool Magazine

Aluminum alloy tool pots eliminate issues with aging and cracking.
The 45-degree radial tool pot design reduces machine width and saves floor space.
The 45-degree radial tool pot design improved the pot up/down speed.
Special tool magazine rotation mechanism enhances positioning accuracy.

Product Profile of #40 Taper Disc Type Tool Magazine
Model Number	R4MKV	R4RKV
Tool Specification	BT / CAT / DIN / HSK50 / HSK63
Tool Capacity	40T	60T
Pocket Pitch (mm)	90
Max. Tool Diameter (mm) (Adjacent Pocket Full/ Adjacent Pocket Empty)	80 / 170
Max. Tool Weight (kg)	10
Tool Change Time (sec / 60hz)	1.5
Magazine Speed (sec / tool / 60hz)	0.15 (Servo)
Tool Management Modes	Random
Tool Changing Selection	Roller Gear Cambox
