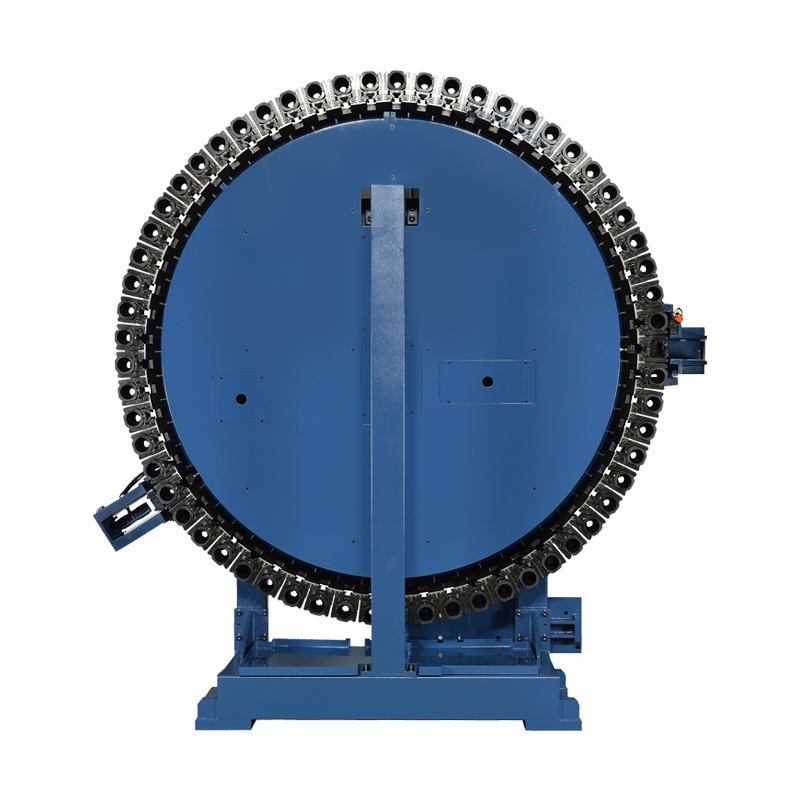

50-Big Disc Type

Features of Tol Magazine

Supports fixed-address tool management, simplifying large-diameter tool management.
The tool chain features a gripper design to securely lock the tool pots in place.
Separated pocket design; the tool disk can continue operating while a tool pot rotates to the spindle side.
Aluminum alloy tool pots eliminate issues with aging and cracking.
Special tool magazine rotation mechanism enhances positioning accuracy.
Lightweight frame design.

Product Profile of #50 Big Disc Type Magazine
Model Number	HMR5C	HMR5F
Tool Specification	BT / CAT / DIN / HSK100
Tool Capacity	40T	61T
Pocket Pitch (mm)	120	130
Max. Tool Diameter (mm) (Adjacent Pocket Full / Adjacent Pocket Empty)	110 / 220	125 / 250
Max. Tool Weight (kg)	15	20
Tool Change Time (sec / 60hz)	2.9
Magazine Speed (sec / tool / 60hz)	0.3 (Servo)	0.17 (Servo)
Tool Management Modes	Random	Fixed Address
Tool Changing Selection	Roller Gear Cambox
