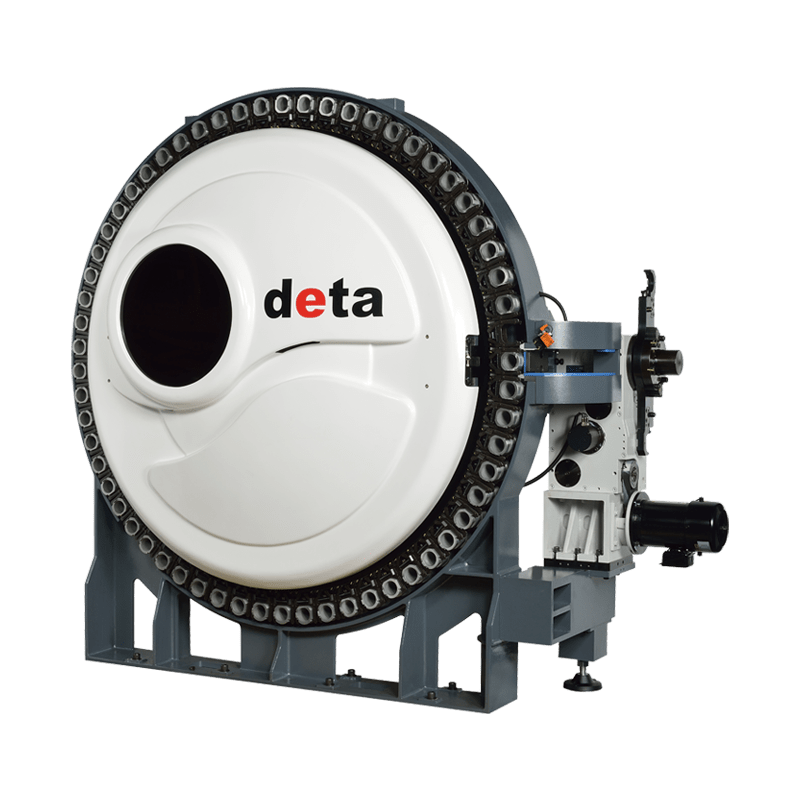

40-Big Disc Type

Features of Tol Magazine

Supports fixed-address tool management, simplifying large-diameter tool management.
The tool chain features a gripper design to securely lock the tool pots in place.
Separated pocket design; the tool disk can continue operating while a tool pot rotates to the spindle side.
Aluminum alloy tool pots eliminate issues with aging and cracking.
Special tool magazine rotation mechanism enhances positioning accuracy.

Product Profile of #40 Big Disc Type Magazine
Model Number	HMR4E	HMR4C	HMR4F
Tool Specification	BT / CAT / DIN / HSK50 / HSK63
Tool Capacity	40T	60T	61T
Pocket Pitch (mm)	85	80	83
Max. Tool Diameter (mm) (Adjacent Pocket Full / Adjacent Pocket Empty)	80 / 160	75 / 150	80 / 150
Max. Tool Weight (kg)	10
Tool Change Time (sec / 60hz)	1.61		1.4
Magazine Speed (sec / tool / 60hz)	0.23 (Servo)	0.2 (Servo)
Tool Management Modes	Random		Random / Fixed Address
Tool Changing Selection	Roller Gear Cambox
