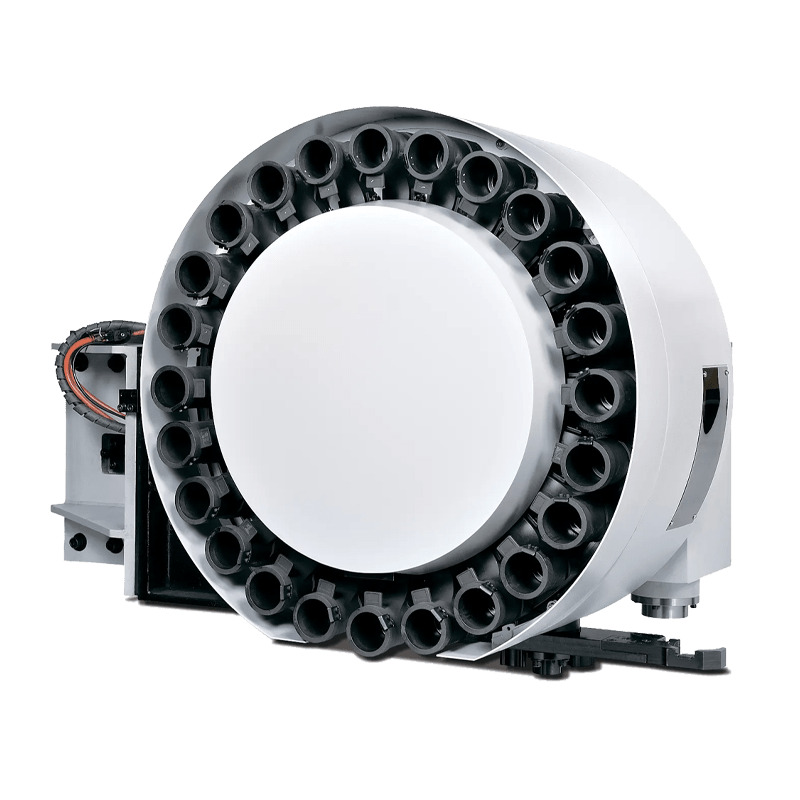

50-Disc Type
Features of Tool Magazine
- High-Precision, Low-Noise & Low-Vibration Drive System
The drive system uses a cylindrical cam and cam followers for accurate positioning and smooth motion.
Features minimal friction and wear for a long service life. - High-Rigidity Structure
One-piece cast design provides excellent mechanical rigidity.
Capable of handling fast operation and supporting heavier tool loads. - Easy-Maintenance Tool Tilting Mechanism
Simple, reliable structure utilizes a mechanical linkage with a fixed shaft and connecting arm.
Ensures strong stability and high durability. - Modular Tool Arm Design
Modular design separates the main body and the gripper for quick and simple specification changes.
Utilizes German spring steel wire with galvanization for superior anti-rust performance.
Integrated drainage function prevents coolant accumulation, ensuring reliable operation.
Specification
| Product Profile of #50 Disc Type Magazine | ||||||
|---|---|---|---|---|---|---|
| Model Number | MR5C | R5CN | MR5D | R5DN | R5EN | R5GN |
| Tool Specification | BT / CAT / DIN / HSK80 / HSK100 / CAPTO C8 | |||||
| Tool Capacity | 20T | 24T | 30T | |||
| Pocket Pitch (mm) | 131 | 110 | 137 | 110 | ||
| Max. Tool Diameter (mm) (Adjacent Pocket Full / Adjacent Pocket Empty) |
125 / 250 | 105 / 210 | 130 / 255 | 105 / 210 | ||
| Max. Tool Weight (kg) | 15 | |||||
| Tool Change Time (sec / 60hz) |
2.5~2.9 | |||||
| Magazine Speed (sec / tool / 60hz) |
0.8 | |||||
| Tool Changing Selection | Roller Gear Cambox | |||||
| Magazine Drive | Induction Motor / Servo Motor | Induction Motor | ||||
| Material of the Pocket | Alu-Alloy | |||||
| Mounting Interface | Side Mounting Type | |||||
