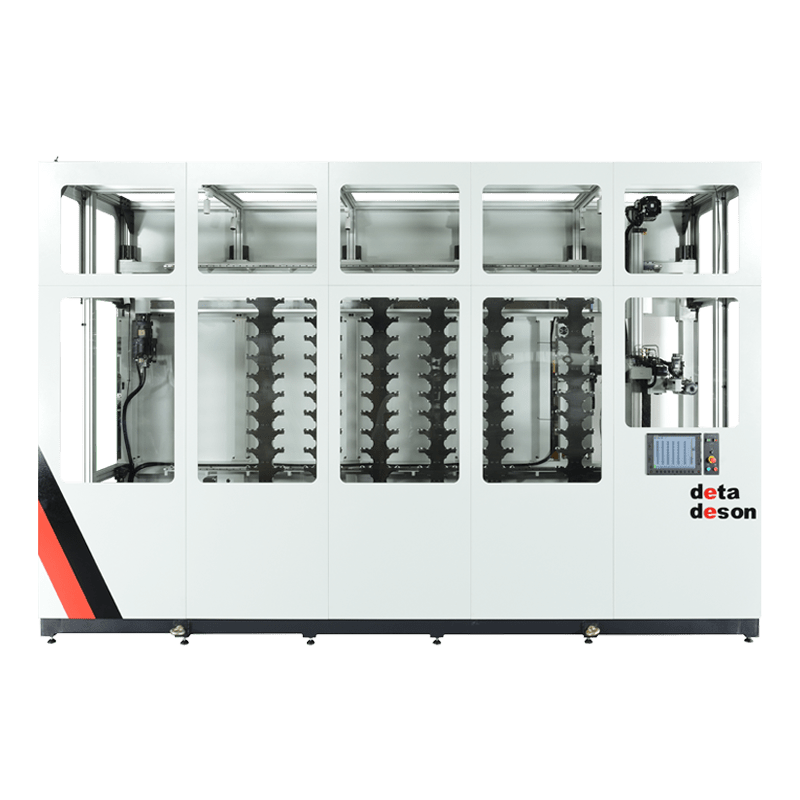

Matrix Type for Tool Magazine
- Home
- Products
- Other Machine
- Matrix Type for Tool Magazine
Features of Tol Magazine
- Servo linear unit in X and Y axis: light and high speed, easy maintenance, low noise and light vibration.
- Max. speed of X and Y axis is 180m per minute to reduce the time of tool-preparation.
- Automatic tool-alignment module can be equipped as an option to reduce the time of tool-alignment.
- Aluminum extrusion frame creates good texture and light weight.
- Built-in air blow device to clean the chips on tools.
Specification
| Product Profile of Matrix Type for Tool Magazine | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | MA5A | |||||||
| Tool Specification | BT / CAT / DIN / HSK100 | |||||||
| Tool Capacity | 183 (Based on Customer's Request) | |||||||
| Max. Tool Diameter (mm) (Adjacent Pocket Full / Adjacent Pocket Empty) |
125 / 250 | |||||||
| Max. Tool Weight (kg) | 25 | |||||||
| Tool Change Time (sec / 60hz) |
Tool <10kg: 1.85sec Tool 10~20kg: 2.4sec Tool 20~25kg: 3sec |
|||||||
| X,Y axis speed (sec / tool) | 180m/min | |||||||
