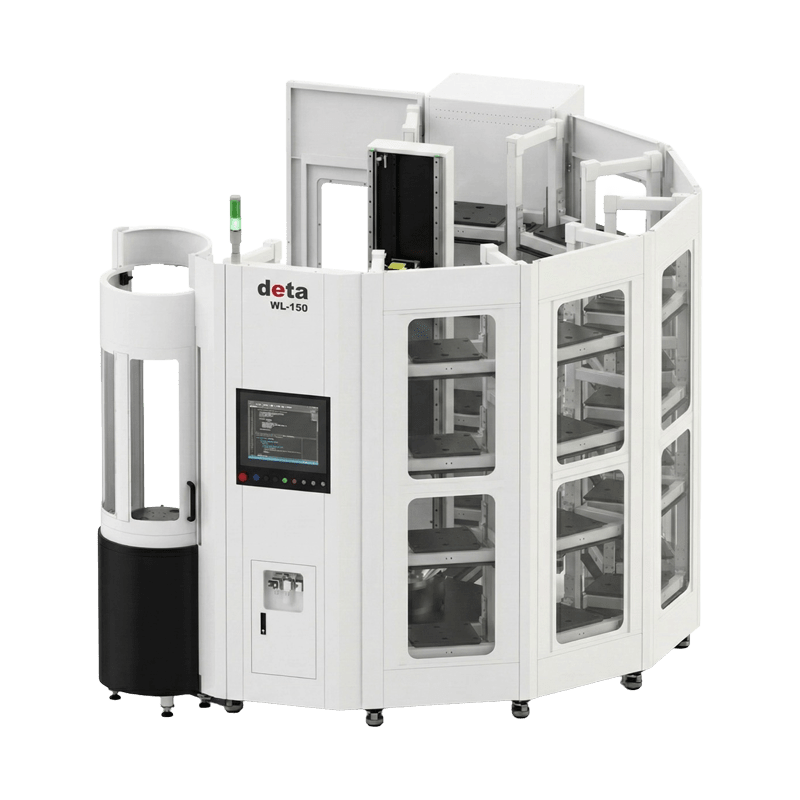

WL
Features of Tol Magazine
- Lightweight robot with a compact footprint.
- Can be integrated with rail to expand the storage capacity.
- Open 3-axis robot design which is suitable for one-to-multiple machine application.
Specification
| Product Profile of WL Series Magazine | ||||
|---|---|---|---|---|
| Model | WL60 | WL150 | WL250 | WL500 |
| Transfer Weight (kg) | 60 | 150 | 250 | 500 |
| Arm Travel (mm) | 960 | 1240 | 1450 | 1650 |
| Up and Down Travel (mm) | 1540 (Optional) | 1575 (Optional) | 1650 (Optional) | 1565 (Optional) |
| Rotation Range | 330 | |||
| Pallet Capacity | 28 / 35 | |||
| Pallet Size | HSK100 | 320mm / 400mm / 500mm | 400mm / 500mm | |
| Gripper Type | Tool Holder Type / Quick-change Type / Fork Type | Quick-change Type / Fork Type | ||
